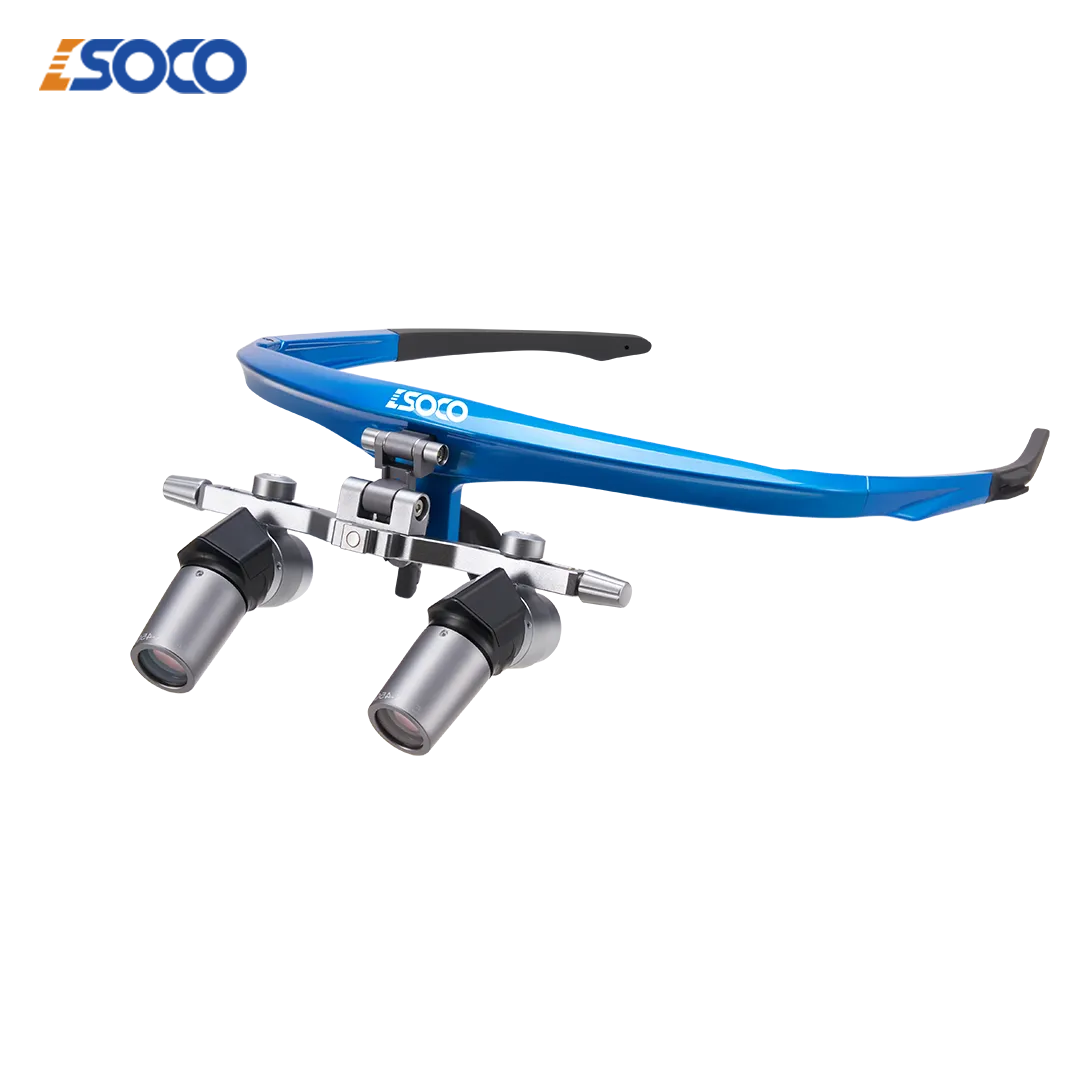

SOCO Medical Loupes — High-Definition Optical Magnification for Precise Dental and Surgical Procedures

SOCO Medical Loupes are precision optical magnification devices designed for dental, surgical, and medical professionals who demand clarity in every procedure. Whether performing delicate suturing, dental restorations, endodontic treatment, or prolonged surgical observation, SOCO loupes serve as a reliable “second pair of eyes” — delivering crisp, distortion-free magnified images that improve visual resolution, reduce clinical errors, and relieve eye, neck, and shoulder fatigue caused by prolonged bent-posture work.

Core Advantages of SOCO Medical Loupes

1. High-Definition Optics for Crisp, Distortion-Free Images

SOCO Medical Loupes utilize premium optical systems — available in both Galilean and Keplerian (prism) configurations — to deliver sharp, high-contrast images with excellent edge-to-edge clarity. Multi-coated lenses minimize chromatic aberration and light loss, ensuring that fine anatomical details remain clearly visible throughout the entire field of view.

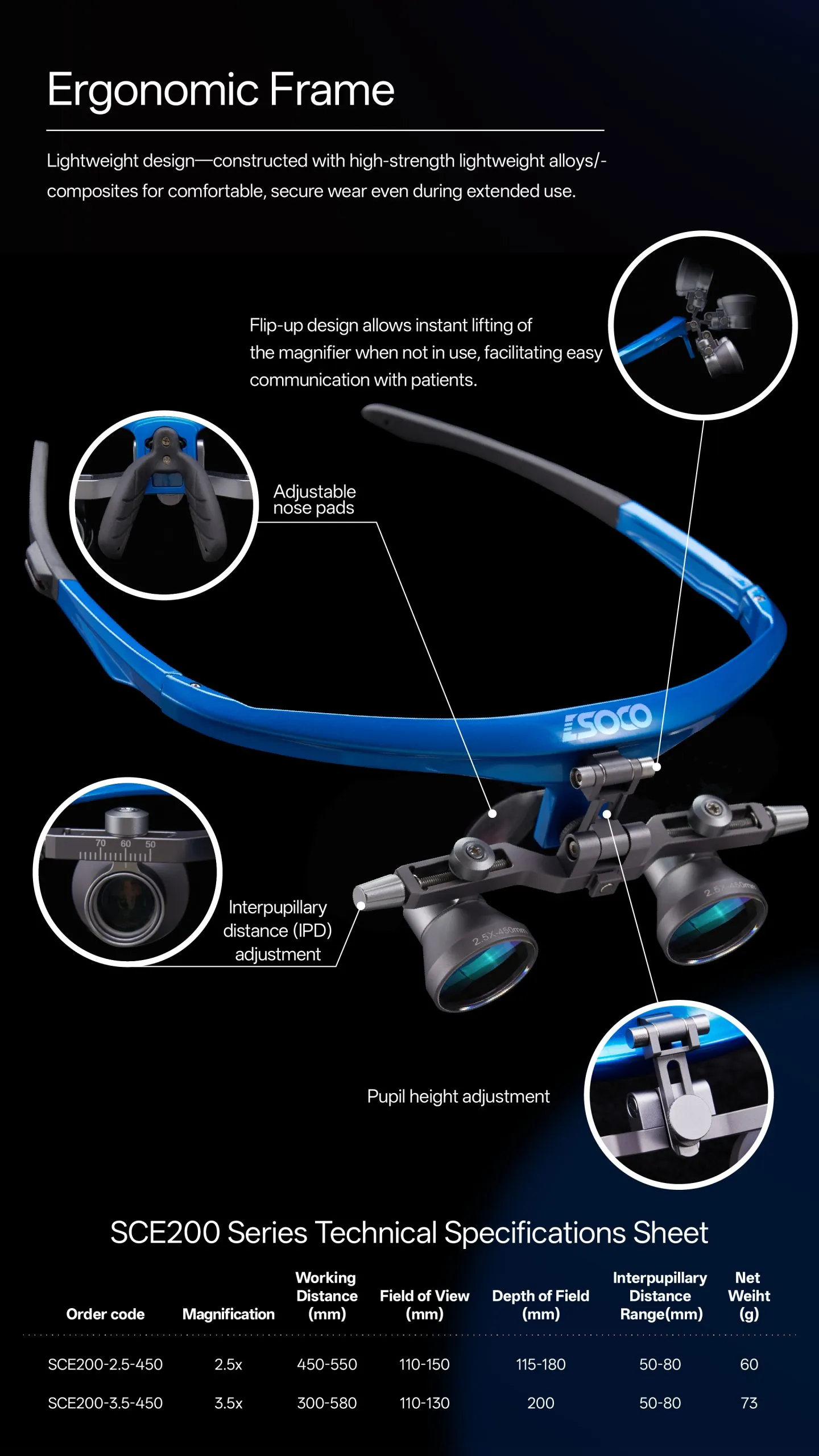

2. Lightweight Ergonomic Frame for All-Day Comfort

Built with a lightweight metal frame, SOCO loupes reduce facial pressure and fatigue during extended wear. The ergonomic design supports a healthy, upright operating posture, helping clinicians avoid the chronic neck and shoulder strain commonly associated with long clinical sessions.

3. Adjustable Pupillary Distance for Personalized Fit

The adjustable pupillary distance (PD) ensures that both optical axes align precisely with the user’s eyes, delivering a single, merged stereoscopic image. This personalized fit maximizes visual comfort and prevents the eye strain and dizziness that result from misaligned optics.

4. Adjustable Working Distance for Every Clinical Posture

SOCO Medical Loupes offer an adjustable working distance ranging from 200mm to 580mm, accommodating clinicians of different heights and operating habits. By matching the working distance to your natural posture, the loupes help maintain an upright, strain-free position throughout the procedure — protecting long-term cervical and lumbar health.

5. Galilean vs Keplerian — Two Optical Systems for Every Need

SOCO offers two optical architectures to match different clinical requirements:

• Galilean loupes (2.5X–3.5X): Lightweight and compact with a wider field of view and greater depth of field. Ideal for general dentistry, restorative work, and routine surgical procedures where a broad overview is preferred.

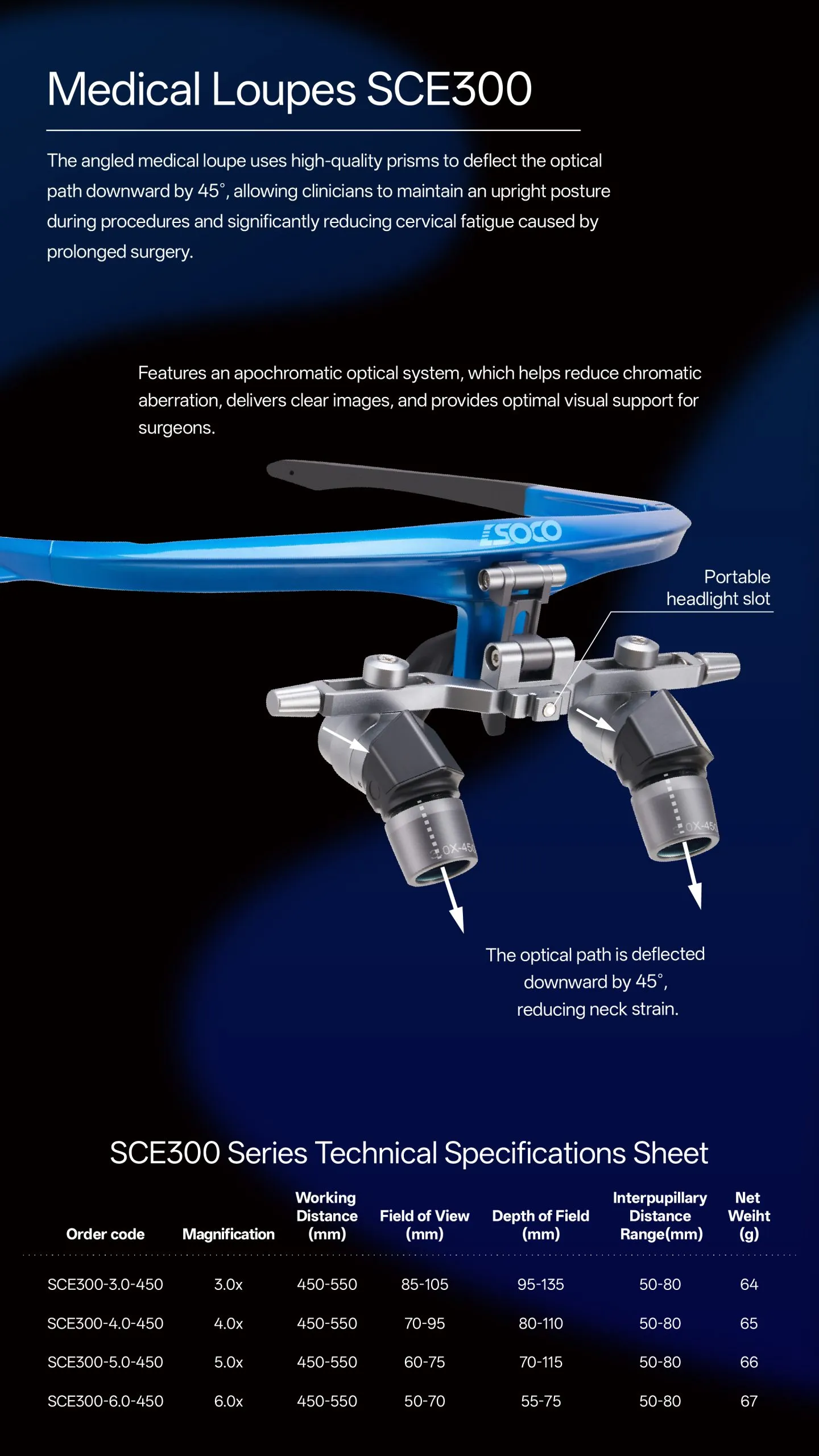

• Keplerian (prism) loupes (4.0X–6.0X): Deliver superior edge-to-edge resolution and higher magnification. Suited for high-precision endodontics, microsurgery, and fine suturing where maximum detail is critical.

SOCO Medical Loupes Specifications

Clinical Applications

SOCO Medical Loupes are widely used across medical and dental specialties that demand fine visual detail:

• Dentistry: Restorative dentistry, endodontics, prosthodontics, implant surgery, and periodontal procedures.
• General surgery: Fine suturing, microsurgical dissection, and plastic/reconstructive procedures.
• ENT (Otolaryngology): Ear, nose, and throat examinations and minor surgical interventions.
• Ophthalmology: External eye examination and fine anterior segment procedures.
• Gynecology: Detailed clinical inspection and minor surgical procedures.
• Veterinary medicine: Precision examination and surgery in animal clinics.

Magnification Selection Guide

Choosing the right magnification depends on the procedure type and the level of detail required:

• 2.5X–3.5X (Low magnification): Provides a wider field of view and larger depth of field. Best suited for general restorative dentistry, hygiene, and routine surgical work where an overview of the operating area is important. Working distance of 400mm or more offers greater comfort.
• 4.0X–6.0X (High magnification): Delivers finer detail for precision-critical procedures such as endodontic treatment, microsurgery, and delicate suturing. Note that higher magnification narrows the field of view and depth of field, requiring steadier positioning.

For first-time users, 2.5X or 3.5X is generally recommended as a versatile starting point before progressing to higher magnification.

Frequently Asked Questions (FAQ)

Q: What magnification options are available for SOCO Medical Loupes?

SOCO Medical Loupes offer magnification from 2.5X to 6.0X. Lower magnification (2.5X–3.5X) provides a wider field of view suited for general procedures, while higher magnification (4.0X–6.0X) is ideal for fine endodontic and microsurgical work.

Q: How do I choose the right working distance for my loupes?

Working distance should match your natural operating posture. Measure the distance from your eyes to the patient’s treatment area while maintaining an upright, strain-free posture. SOCO loupes offer adjustable working distances from 200mm to 580mm to suit different clinicians and procedures.

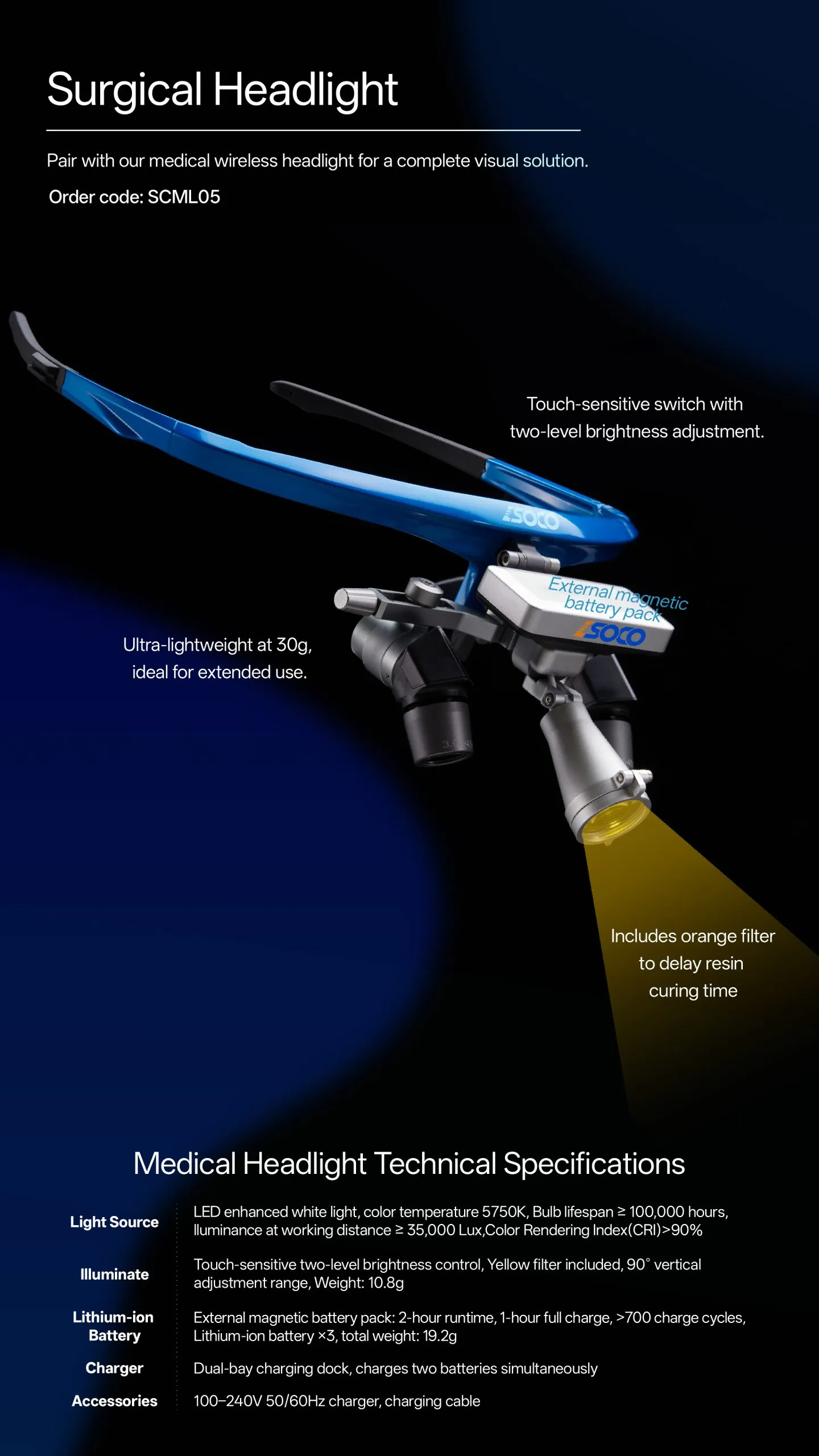

Q: Can SOCO Medical Loupes be used with a headlight?

Yes, SOCO Medical Loupes are compatible with clip-on LED headlights, providing bright, shadow-free illumination directly in the field of view for enhanced visibility during procedures.

Q: What is the difference between Galilean and Keplerian loupes?

Galilean loupes offer 2.5X–3.5X magnification with a lighter, more compact design and wider field of view. Keplerian (prism) loupes provide 4.0X–6.0X magnification with superior edge-to-edge clarity, suited for high-precision microsurgical and endodontic procedures.

Related Products

• SC UL NiTi File — High-efficiency rotary NiTi file system for precise root canal preparation.
• SOCO Surgical Microscope — Apochromatic optics with stepless magnification for advanced dental microsurgery.
• SC NiTi File System — SOCO’s classic endodontic file line covering a broad range of canal preparation needs.

Request a Quote for SOCO Medical Loupes

For detailed specifications, pricing, and ordering information for SOCO Medical Loupes, please contact us:

• Tel: +86-0757-81806001
• Email: sales@socodent.com
• Website: www.socodent.com

SOCO — Dedicated to dental and medical precision instrument R&D and manufacturing, providing high-definition optical magnification solutions for your clinical practice.
